Effects Speaker -R209- / -R210-, Removing And Installing, Bang & OLUFSEN®: Removing

-- Remove the rear shelf, refer to Passenger Compartment Trim .

-- Release and disconnect the connector from the Left Effects Speaker -R209-.

-- Remove the screws -1- from the Left Effects Speaker -R209- -2-.

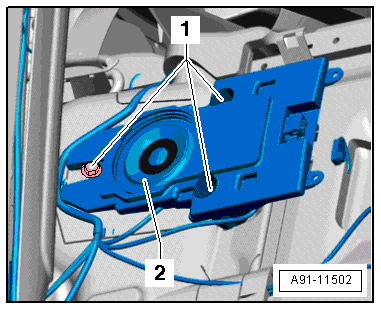

Fig 1: Identifying Screws -1- From Left Effects Speaker -R209- -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Effects Speaker -R209- -2- from the rear shelf.
