Digital Sound System Control Module 2 -J787- CONNECTOR ASSIGNMENT, BANG & OLUFSEN

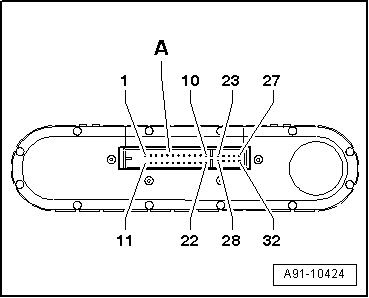

Fig 1: Black 32-Pin Multi-Pin Harness Connector (T32G)

Courtesy of AUDI OF AMERICA, LLC

A - 32-Pin Connector -T32g-

Fig 2: Black 32-Pin Multi-Pin Harness Connector (T32G)

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30
2. Terminal 31
3. Right Front Bass Speaker -R23- (+)
4. Right Front Bass Speaker -R23- (-)
5. Left Front Bass Speaker -R21- (+)
6. Left Front Treble Speaker Motor -V344- (-)
7. Left Front Treble Speaker Motor -V344-
8. Digital Sound System Control Module -J525-
9. Digital Sound System Control Module -J525-
10. Digital Sound System Control Module -J525-
11. Digital Sound System Control Module -J525-
12. Digital Sound System Control Module -J525-
13. Digital Sound System Control Module -J525-
14. Digital Sound System Control Module -J525-
15. Subwoofer -R211- (+)
16. Subwoofer -R211- (-)
17. Left Front Bass Speaker -R21- (-)
18. Left Front Treble Speaker Motor -V344- (+)
19. Right Front Treble Speaker Motor -V345-
20. Digital Sound System Control Module -J525-
21. Right Front Treble Speaker Motor -V345- (+)
22. Right Front Treble Speaker Motor -V345- (-)
23. Digital Sound System Control Module -J525-
24. Digital Sound System Control Module -J525-
25. Digital Sound System Control Module -J525-
26. Digital Sound System Control Module -J525-
27. Digital Sound System Control Module -J525-
28. Right Rear Bass Speaker -R17- (+)
29. Right Rear Bass Speaker -R17- (-)
30. Digital Sound System Control Module -J525-
31. Left Rear Bass Speaker -R15- (+)
32. Left Rear Bass Speaker -R15- (-)
