Overview Of Component Locations For BOSE® Sound System, Speaker, Standard

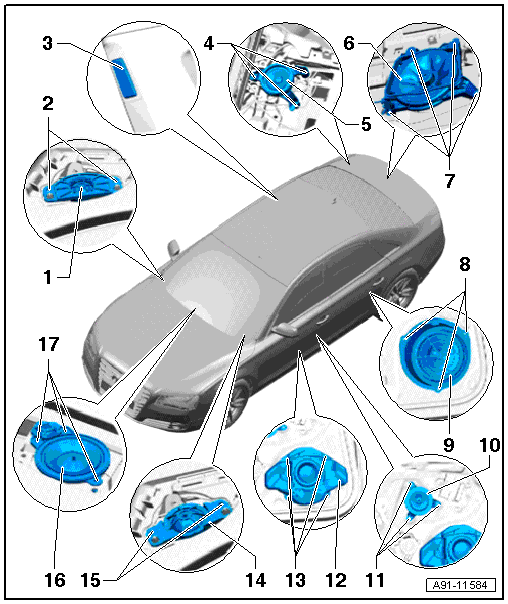

Fig 1: Overview Of Component Locations For Bose® Sound System, Speaker, Standard

Courtesy of AUDI OF AMERICA, LLC

Right Front Treble Speaker -R22-
- Standard, removing and installing, refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, STANDARD
- Removing and installing BOSE® LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, BOSE®
Bolt
- 1.5 Nm
- Quantity: 2
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing, refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING
Bolt
- 2.5 Nm
- Quantity: 3
Left Effects Speaker -R209- /Right Effects Speaker -R210- BOSE®
- Removing and installing, refer to LEFT/RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, BOSE® .
Subwoofer -R211-
- Removing and installing, refer to Subwoofer -R211-, REMOVING AND INSTALLING, STANDARD, BOSE® .
Bolt
- 2.5 Nm
- Quantity: 4
Bolt
- 3 Nm
- Quantity: 3
Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
- Removing and installing, refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING .
Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
- Removing and installing, refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING
Bolt
- 3 Nm
- Quantity: 3
Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Removing and installing, refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 4
Left Front Treble Speaker -R20-
- Standard, removing and installing, refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, STANDARD
- Removing and installing BOSE®, refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, BOSE®
Bolt
- 1.5 Nm
- Quantity: 2
Center Speaker -R208-
- Removing and installing, refer to Center Speaker -R208-, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 3
