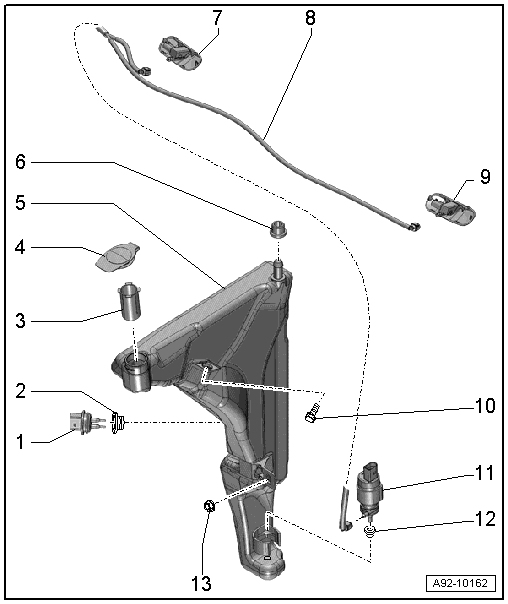

Overview - Windshield Washer System
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Grommet
- Screen
- Cap
- For the filler neck
- Windshield Washer Fluid Reservoir
- Removing and installing, refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Grommet
- Right Spray Nozzle
- Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Water Hose
- For the windshield washer system
- Left Spray Nozzle
- Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Bolt
- 7 Nm
- Windshield Washer Pump -V5-
- Removing and installing, refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Nut
- 7 Nm
