Special Tools

Fig 1: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

Pry lever 80-200
Engine and Gearbox Jack VAS 6931
Tensioning Strap T10038
Motor Transport Loop T40016
Crankshaft Socket T40058
Gearbox Support T40173

Fig 2: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

Pry lever 80-200
Engine and Gearbox Jack VAS 6931
Tensioning Strap T10038
Counterhold - Vibration Damper T10355
Gearbox Support T40173

Fig 3: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

Pry Lever 80-200
Engine and Gearbox Jack VAS 6931
Engine Bung Set VAS 6122
Crankshaft Socket T40058
Gearbox Support T40173

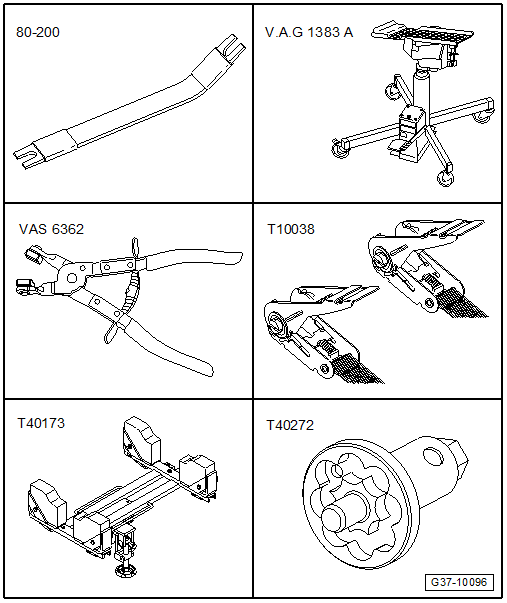

Fig 4: Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special Tools And Workshop Equipment Required

Pry Lever 80-200
Engine and Gearbox Jack VAS 6931
Hose Clip Pliers VAS 6362
Tensioning Strap T10038
Gearbox Support T40173
Crankshaft Turning Tool T40272

Special Tools And Workshop Equipment Required

Used Oil Collection and Extraction Unit SMN372500

Fig 5: Identifying Used Oil Collection And Extraction Device VAS 6622
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG 1332/14

Fig 6: Identifying Ring Wrench - 16mm VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Gearbox Support T10337

Fig 7: Identifying Gearbox Support T10337
Courtesy of AUDI OF AMERICA, LLC
Socket And Key T40031

Fig 8: Identifying Socket And Key T40031
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock T40170

Fig 9: Identifying Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Locking Button Removal Tool T40203

Fig 10: Identifying Release Tool T40203
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack VAG 1383 A

Fig 11: Identifying Engine And Gearbox Jack VAG 1383 A
Courtesy of AUDI OF AMERICA, LLC
Engine And Transmission Holder VAS 6095

Fig 12: Engine And Transmission Holder VAS 6095
Courtesy of AUDI OF AMERICA, LLC
Shop Crane VAS 6100

Fig 13: Identifying Shop Crane VAS 6100
Courtesy of AUDI OF AMERICA, LLC
Oil Filler VAS 6262A

Fig 14: Adapter For Oil Filling VAS 6262 A
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Adapter 6 VAS 6262/6

Fig 15: Adapter For Oil Filling VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
Holding Plate VW 309

Fig 16: Holding Plate VW 309
Courtesy of AUDI OF AMERICA, LLC
Pry Lever 80-200

Fig 17: Identifying Pry Lever 80-200
Courtesy of AUDI OF AMERICA, LLC
Hook And Support Tool 3311 with Hook And Support Tool - Bolt 3311/1

Fig 18: Identifying Hook And Support Tool 3311
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm 3094

Fig 19: Identifying 3094 Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
Trim Removal Wedge 3409

Fig 20: Identifying Trim Removal 3409 Wedge
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Jointed Hose VAS 6262/5
