Fresh Air Blower Control Module Connector End View (J126, T4cb)

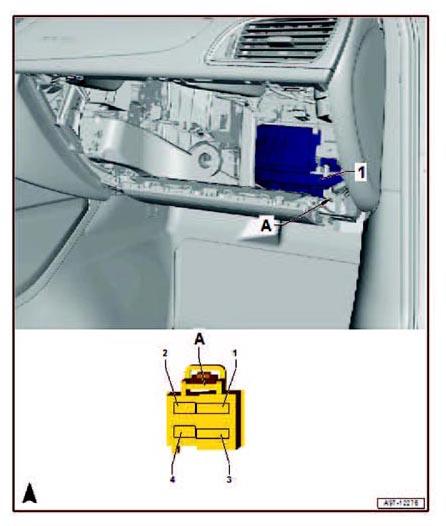

Fig 1: Fresh Air Blower Control Module Connector End View (J126, T4cb)

Courtesy of AUDI OF AMERICA, LLC

1	Fresh Air Blower Control Module -J126-
	with Fresh air blower -V2-
A	4-Pin Connector -T4cb-, black

-T4cb- (A)	Designation
1	Terminal 31, to (81) Ground Connection 1 (in instrument panel wiring harness) (45) Ground Connection (behind instrument panel, center)
2
3	Terminal 30, from Fuse Panel C -SC-
4	Climatronic Control Module -J255-
