Signal Horn Bracket

Removal

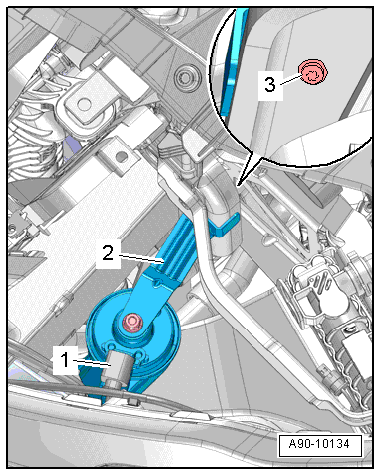

Fig 1: Identifying Bracket And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .

-- Disconnect the electrical connector -1-.

-- Remove bolt -3-.

-- Remove the bracket -2- and the horn.

Installation

• Tightening specification, refer to SIGNAL HORNS OVERVIEW .

Install in reverse order of removal, observing the following:

-- Install the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .
