Outside Air Temperature Sensor -G17-
Removal
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

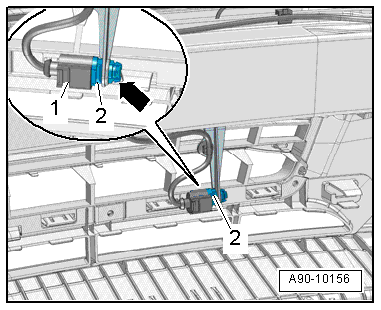

-- Squeeze the clips carefully -arrow- and remove the Outside air temperature sensor -2- upward.
-- Disconnect the electrical connector -1-.
Installation
Install in reverse order of removal, observing the following:
-- Install the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
After completing the repair, perform the following on the Front A/C display control head -E87- using the Vehicle Diagnostic Tester in "Guided Fault Finding" :
-- Read the DTC memory and erase any entries.
