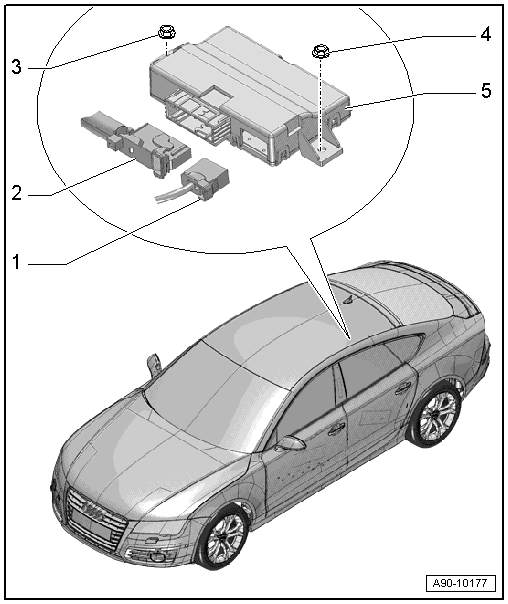

Data Bus On Board Diagnostic Interface -J533- Overview
- Fiber Optic Cable Connector
- Attach with the Cable connector protective cap VAS 6223/9.
- Electrical Connector
- For the data bus on board diagnostic interface.
- Nut
- 2 Nm
- Nut
- 2 Nm
- Data Bus On Board Diagnostic Interface -J533-
- Removing and installing, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- .
- Multi-pin connector pin assignment, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE, MULTI-PIN CONNECTOR ASSIGNMENT .
