Cigarette Lighter, 12 Volt Outlet, Overview

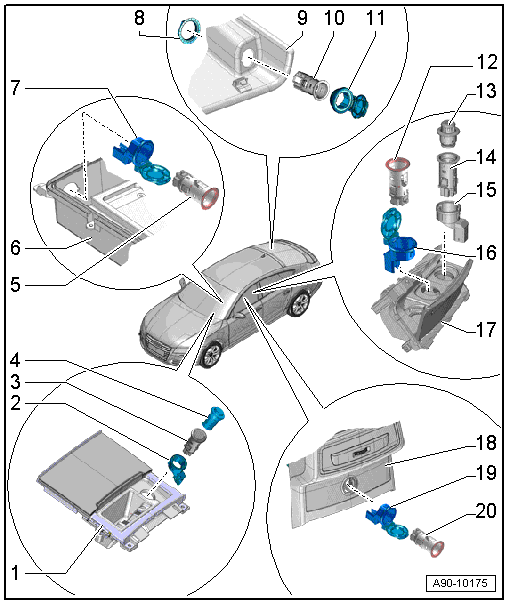

Fig 1: Overview Of Cigarette Lighter, 12 Volt Outlet

Courtesy of AUDI OF AMERICA, LLC

1. Front Ashtray
   • For the Cigarette lighter -U1-.
2. Cigarette Lighter Illumination -L28-
   • For the Cigarette lighter -U1-.
   • Can only be replaced together with the cigarette lighter.
3. Cigarette Lighter -U1-
   • Removing and installing, refer to CIGARETTE LIGHTER -U1- .
4. Cigarette Lighter
5. 12 V Outlet -U5-
   • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
6. Storage Compartment
   • In center console
7. Socket Illumination -L42-
   • For the 12 V socket -U5-
   • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET .
8. Nut
   • 2 Nm
9. Luggage Compartment Side Trim Panel Cover
10. 12 V Socket 3 -U19-
    • Removing and installing, refer to 12 V SOCKET 3 FROM TRIM PANEL .
    • Removing and installing, refer to 12 V SOCKET 3 .
11. Mount With Cover
    • For the 12 V socket 3 -U19-.
12. 12 V Socket 4 -U20-
    • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
13. Cigarette Lighter
14. Rear Cigarette Lighter -U9-
    • Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
15. Rear Cigarette Lighter Illumination Bulb -L32-
    • For the Rear cigarette lighter -U9-.
    • Removing and installing, refer to REAR CIGARETTE LIGHTER ILLUMINATION BULB .
16. Socket Illumination -L42-
    • For the 12 V socket 4 -U20-.
    • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 4 .
17. Mount
    • For the cigarette lighter and socket.
    • Equipment level
18. Divider
    • For the center console.
    • Equipment level
19. Socket Illumination -L42-
    • For the 12 V socket 2 -U18-
    • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
20. 12 V Socket 2 -U18-
    • Removing and installing, refer to SOCKET ILLUMINATION BULB, 12 V SOCKET 2 .
