Comp. LOC. Radio: Telephone

  1. 1 - Telephone baseplate -R126-
    • if equipped
  2. 4 - Cellular telephone amplifier -R86-
    • if equipped
  3. 7 - Left front microphone -R140-
  4. 8 - Right front microphone -R141-
  5. 9 - Interior microphone -R74-
  6. 14 - Information electronics control module 1 J794

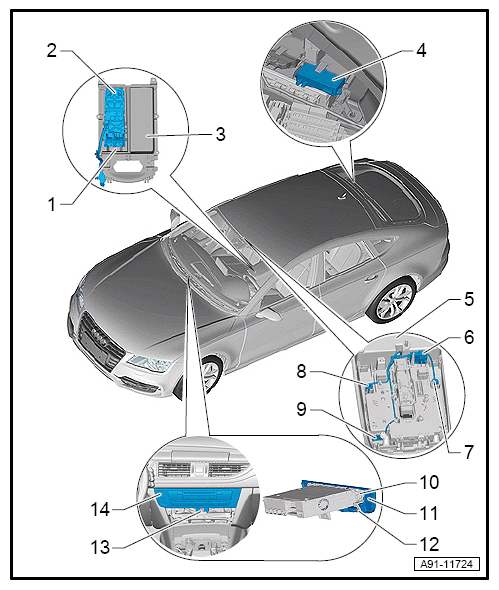

G12770228Courtesy of AUDI OF AMERICA, LLC
