Ground Left D-Pillar

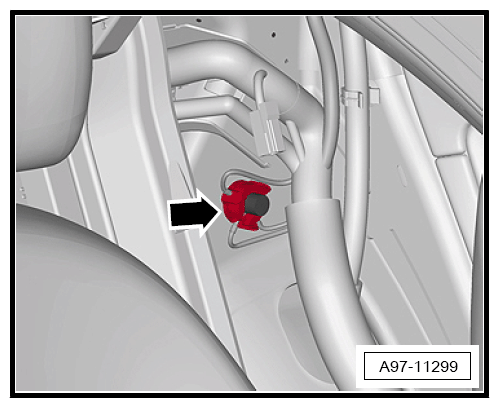

  1. 653 - Ground Connection (on left D-pillar)
    • Behind the left rear backrest element
    • Torque Setting 9 Nm
G12768084Courtesy of AUDI OF AMERICA, LLC

10.18.2016
