Relays Overview

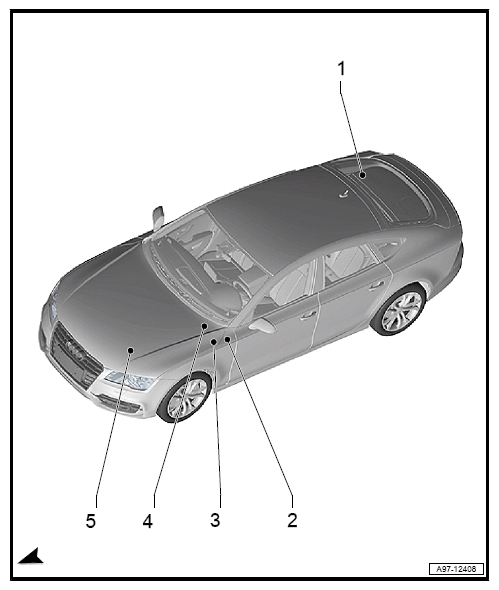

G12769952Courtesy of AUDI OF AMERICA, LLC
  1. 1 - Relay Carrier In Luggage Compartment
  2. 2 - Relays On Relay Carrier Behind Left I/P
  3. 3 - Relay Carrier Behind Left I/P
  4. 4 - Relays In E-Box Plenum Chamber
  5. 5 - Relays In E-Box, V6 TDI
    • from model year 2015
