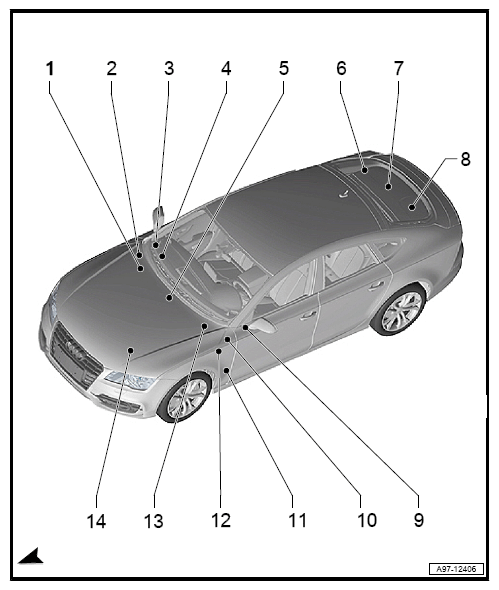

Overview Of Fuses
- 1 - Battery Jump Start Terminal -U6-
- 2 - Not for USA/Canada
- 3 - Fuse Panel C -SC-
- , left-hand drive Fuse Panel C -SC-, Left-Hand Drive
- Position of fuses, left-hand drive Position of Fuses Fuse Panel C -SC-, Left-Hand Drive
- 4 - Not for USA/Canada
- 5 - Terminal 30 Wire Junction -TV2-
- Coolant Fan Single Fuse -S42-
- Second Speed Coolant Fan Fuse -S104-
- Catalytic converter heating fuse -S351-
- Catalytic converter heating fuse 2 -S354-
- and Position of Fuses Terminal 30 Wire Junction -TV2-
- 6 - Fuse Panel F -SF-
- Rear window defogger fuse -S41-, from model year 2015
- Self-Leveling System Fuse -S110-, from model year 2015
- Rear Lid Remote Unlocking Fuse -S195-, through model year 2014
- Fuse 1 - Terminal 30 -S204-, from model year 2015
- Optional Equipment Main Fuse -S245-
- Circuit Breaker 1 -S361-, from model year 2015
- Circuit Breaker 2 -S362-, from model year 2015
- , through model year 2014 Fuse Panel F -SF-, Through Model Year 2014
- , from model year 2015 Fuse Panel F -SF-, From Model Year 2015
- Position of fuses Position of Fuses Fuse Panel F -SF-
- 7 - Not Used
- 8 - Main Fuse On The Battery -A-
- Safety Fuse 1 -S131-
- Safety Fuse 2 -S132-
- Safety Fuse 3 -S133-
- Battery Interrupt Igniter -N253-
- and Position of Fuses Main Fuse Carrier On Battery -A-
- 9 - Fuse Panel B -SB-
- , left-hand drive Fuse Panel B -SB-, Left-Hand Drive
- Position of fuses, left-hand drive Position of Fuses Fuse Panel B -SB-, Left-Hand Drive
- 10 - Fuses On The Auxiliary Relay Panel In The Relay Panel, Behind Instrument Panel
- Heating Element Fuse 1 -S276-
- Heating Element Fuse 2 -S277-
- and Position of Fuses Fuses On Auxiliary Relay Carrier In Relay Carrier Behind Instrument Panel
- 11 - Fuse Panel D -SD-
Only left-hand drive
- ABS Control Module Fuse 1 -S123-
- Fuse Panel D -SD-
- Position of fuses Position of Fuses Fuse Panel D -SD-
- ABS Control Module Fuse 1 -S123-
- 12 - Fuses On Connector Station Left A-Pillar
- Driver's Power Seat Adjustment Circuit Breaker 1 -S44-, left-hand drive
- Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46-, left-hand drive
- and Position of Fuses, left-hand drive Fuses On Connector Station Left A-Pillar, Left-Hand Drive
- 13 - Fuse Panel A -SA- In Electronics Box Plenum Chamber
- Automatic Transmission control module fuse -S113-
- Glow Plugs Fuse -S125-
- Secondary Air Injection (AIR) Pump Fuse -S130-
- , left-hand drive, except 6 cylinder diesel engine with engine code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF Fuse Panel A -SA-, Left-Hand Drive, Except 6 Cylinder Diesel Engine with Engine Code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF
- Position of fuses Fuse Panel A -SA-
- 14 - Not For USA/Canada
- only 6 Cylinder diesel engine with engine code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF
