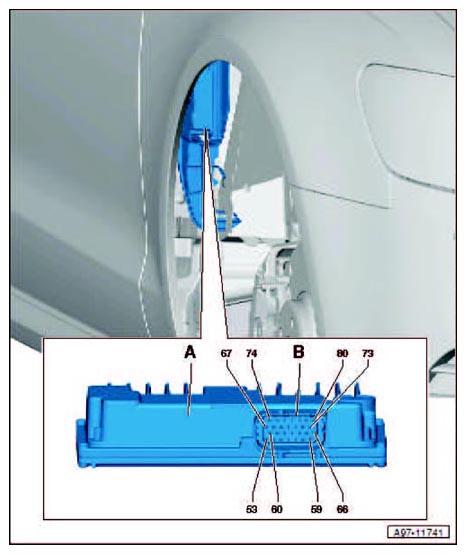

| 53 |
Terminal from (B32) Positive-connection 7 (30a) in main wiring harness Fuse Panel F -SF- |
| 54 |
Terminal from (B281) Positive-connection 5 (15a) in main wiring harness Fuse Panel B -SB- |
| 55 |
|
| 56 |
Extended System CAN-B Bus-bow (B109) CAN-Bus-Extended Low Connection 1 (in main wiring harness) |
| 57 |
Extended System CAN-Bus High (B108) CAN-Bus-Extended High Connection 1 (in main wiring harness) |
| 58 |
|
| 59 |
RPM Signal of (D130) Connection 28 (in engine compartment wiring harness) Engine Control Module (ECM) -J623- to Digital Sound System Control Module -J525- |
| 60 |
|
| 61 |
|
| 62 |
|
| 63 |
Ground Subframe mount sensor 1 -G748- |
| 64 |
|
| 65 |
|
| 66 |
Terminal 31, to (398) Ground protect Connection 33 (in main wiring harness) (379) Ground Connection 14 (in main wiring harness) (43) Ground Connection (on right lower A-pillar) |
| 67 |
Terminal 30, from (B321) Positive connection 7 (30a) in main wiring harness Fuse Panel F -SF- |
| 68 |
Subframe mount actuator 1 -N513- |
| 69 |
Subframe mount actuator 2 -N514- |
| 70 |
5 V-output, to (D129) Connection 27 (in engine compartment wiring harness) Subframe mount sensor 2 -G749- Subframe mount sensor 1 -G748- |
| 71 |
Ground Subframe mount sensor 2 -G749- |
| 72 |
|
| 73 |
|
| 74 |
Subframe mount actuator 1 -N513- |
| 75 |
Subframe mount actuator 2 -N514- |
| 76 |
|
| 77 |
|
| 78 |
Signal Subframe mount sensor 1 -G748- |
| 79 |
Signal Subframe mount sensor 2 -G749- |
| 80 |
Terminal 31, to (398) Ground Connection 33 (in main wiring harness) (379) Ground Connection 14 (in main wiring harness) (43) Ground Connection (on right lower A-pillar) |
