Power Steering Control Module Connector End View (J500, T2fa, T6ak)

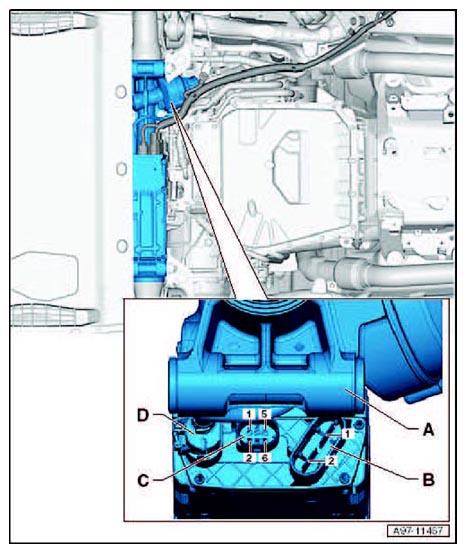

Fig 1: Power Steering Control Module Connector End View (J500, T2fa, T6ak)
G10360159Courtesy of AUDI OF AMERICA, LLC
A Power Steering Control Module -J500-

  • with electro-mechanical power steering motor -V187-, steering torque sensor -G269-
B Double Connector -T2fa-, black
C 6-Pin Connector -T6ak-, black
D Connector Sensor
