Parking Aid Control Module/Parallel Parking Assistance Control Module Connector End View (J446, J791, T16i, T12w, T12q)

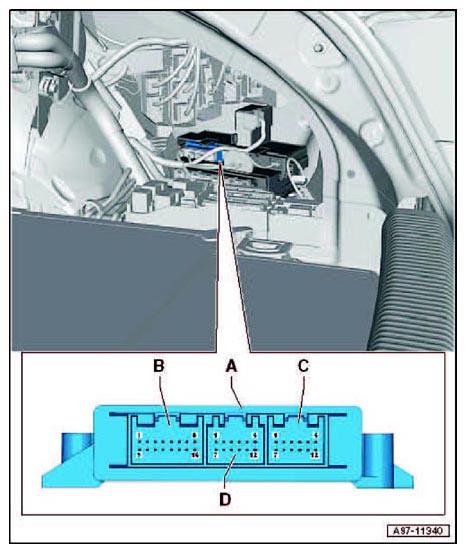

Fig 1: Parking Aid Control Module/Parallel Parking Assistance Control Module Connector End View (J446, J791, T16i, T12w, T12q)

Courtesy of AUDI OF AMERICA, LLC

A	Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791-
B	16-Pin Connector -T16i-, brown
C	12-Pin Connector -T12w-, black
D	12-Pin Connector -T12q-, brown
