Lane Change Assistance Control Module 2 Connector End View (J770, T12u)
Lane Change Assistance Control Module 2 Connector End View (J770, T12u)

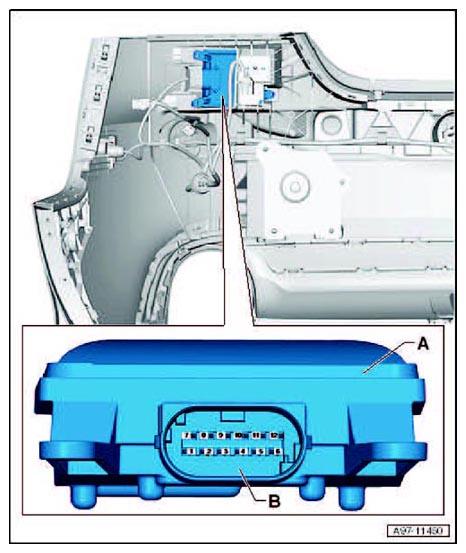

Fig 1: Lane Change Assistance Control Module 2 Connector End View (J770, T12u)
Courtesy of AUDI OF AMERICA, LLC
A
Lane Change Assistance Control Module 2 -J770-
B
12-Pin Connector -T12u-, black
