Fuel Pump (FP) Control Module Connector End View (J538, T6ar)

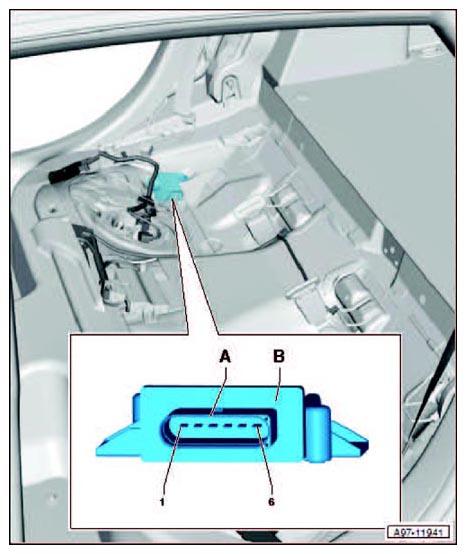

Fig 1: Fuel Pump (FP) Control Module Connector End View (J538, T6ar)
G10360196Courtesy of AUDI OF AMERICA, LLC
A 6-Pin Connector -T6ar-, black
B Fuel Pump (FP) Control Module -J538-
