Engine Control Module (ECM) Connector End View (J623, T105, T91)

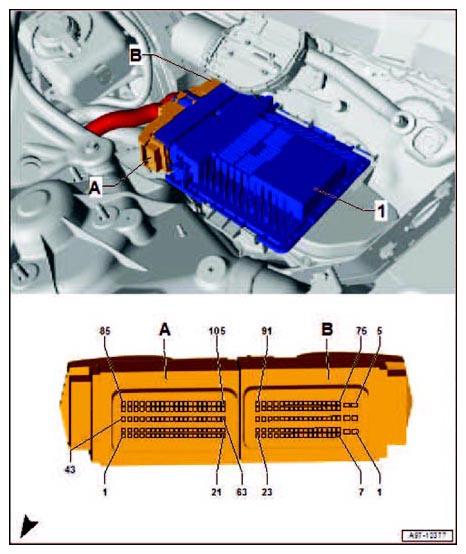

Fig 1: Engine Control Module (ECM) Connector End View (J623, T105, T91)

Courtesy of AUDI OF AMERICA, LLC

1	Engine Control Module (ECM) -J623-
A	105-Pin Connector -T105-, black
B	91-Pin Connector -T91-, black
