Distance Regulation Control Module Connector End View (J428, T8k)

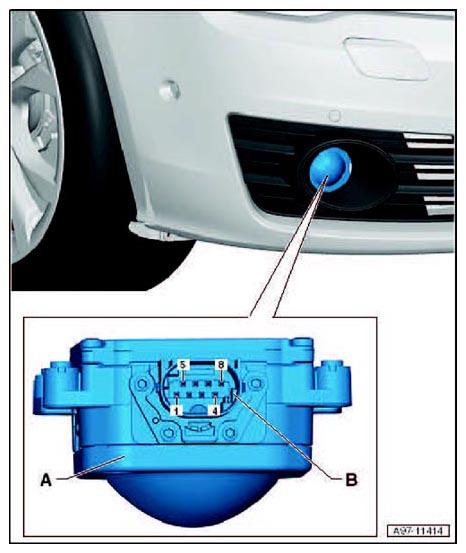

Fig 1: Distance Regulation Control Module Connector End View (J428, T8k)
G10360153Courtesy of AUDI OF AMERICA, LLC
A Distance Regulation Control Module -J428-
B 8-Pin Connector -T8k-, black
