ABS Control Module Connector End View (J104, T38a)

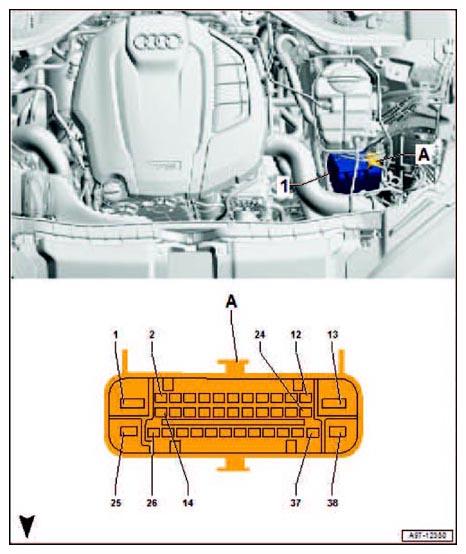

Fig 1: ABS Control Module Connector End View (J104, T38a)

G10360152

Courtesy of AUDI OF AMERICA, LLC

1	ABS Control Module -J104-
A	38-Pin Connector -T38a-, black
