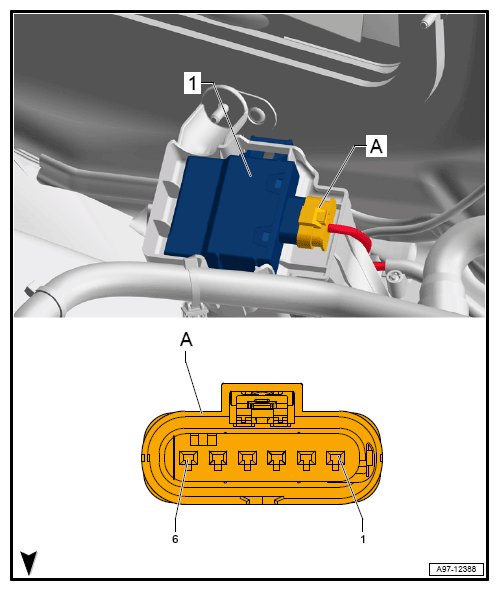

Structure-Borne Sound Control Module -J869-, Location

  1. 1 - Structure-Borne Sound Control Module -J869-
  2. A - 6-Pin Connector -T6bw-, black
G12770063Courtesy of AUDI OF AMERICA, LLC
