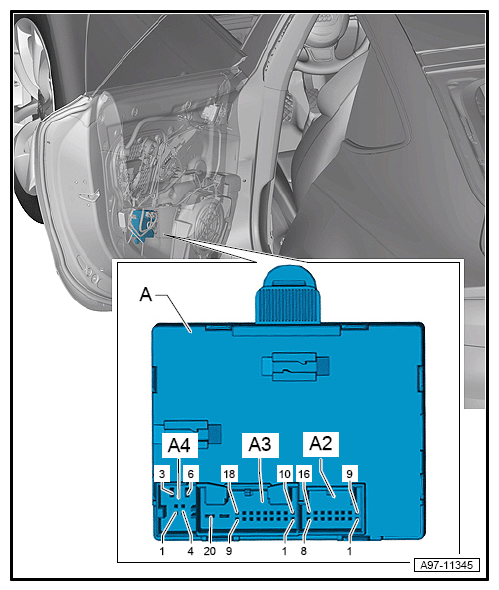

Left Rear Door Control Module -J388-, Connector Views
Left Rear Door Control Module -J388-, Connector Views
16-Pin Connector -T16n-/20-Pin Connector -T20g-
A2 - 16-Pin Connector -T16n-, black
A3 - 20-Pin Connector -T20g-, black
A4 - Not used
