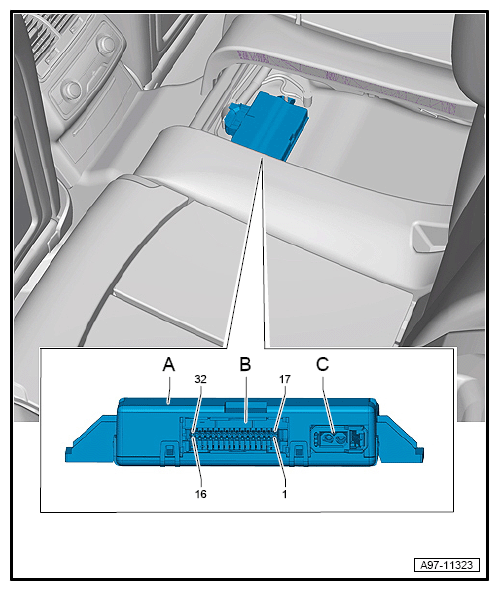

Data Bus On Board Diagnostic Interface -J533-, Connector Views
Data Bus On Board Diagnostic Interface -J533-, Connector Views
32-Pin Connector -T32b-/Double Connector -T2aq-
B - 32-Pin Connector -T32b-, black
C - Double Connector -T2aq-, MOST-Bus, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
