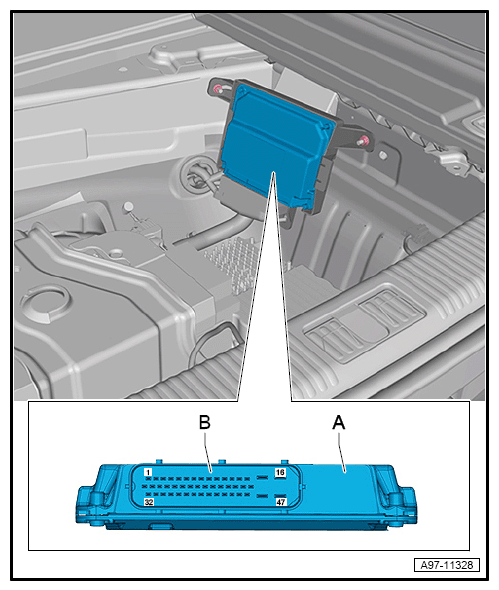

All Wheel Drive Control Module -J492-, Location

  1. All-Wheel Drive Control Module -J492-
  2. 47-Pin Connector -T47a-, black
G12768225Courtesy of AUDI OF AMERICA, LLC
