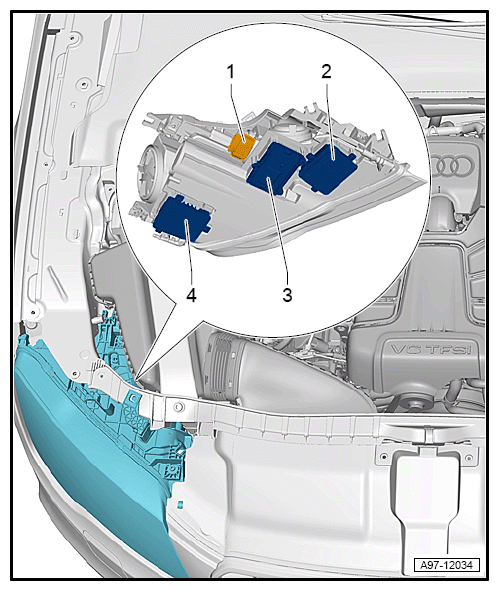

Right High-Intensity Gas Discharge Lamp Control Module -J344-/Left Hid Headlamp Control Module -J343- Hid, Location
NOTE:
llustration shows right headlamp.
- 1 - 14-Pin Connector -T14c-, black
- 1 - 14-Pin Connector -T14d-, black
- 2 - Left Daytime Running Lamp and Parking Light Control Module -J860-
- 2 - Right Daytime Running Lamp and Parking Light Control Module -J861-
- 3 - Left Headlamp Power Output Stage -J667-
- 3 - Right Headlamp Power Output Stage -J668-
- 4 - Left High-intensity Gas Discharge Lamp Control Module -J343-
- 4 - Right High-intensity Gas Discharge Lamp Control Module -J344-
