Overview - Front Display And Control Head, "Convenience" Version

General Information, refer to CONTROL HEAD .

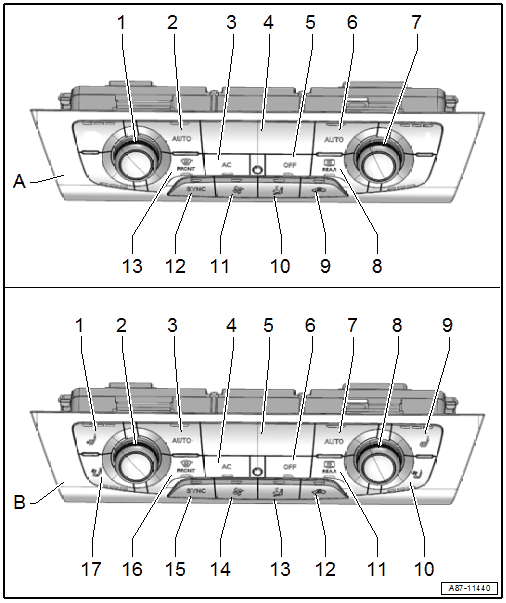

Fig 1: Front Display And Control Head, "Convenience" Version, Overview

Courtesy of AUDI OF AMERICA, LLC

1. A - Climatronic Control Module -J255- Control Head for Vehicles without Seat Heating/Seat Ventilation
   • With infrared sensor for temperature and sunlight Determines the temperature and sunlight on the display and control unit
2. 1 - Driver Side Temperature Preset Regulator
3. 2 - Left Auto Button for Automatic A/C System Control
   • Illuminated LED indicates the "Automatic control" function is selected
4. 3 - A/C Button for A/C Compressor
   • Illuminated LED indicates the "A/C compressor on" function is selected
5. 4 - Display
6. 5 - OFF  -Button for the Hearing and the Climate Controls
   • Illuminated LED indicates the "off" function is selected.
7. 6 - Right Auto  Button for Automatic A/C System Control
   • Illuminated LED indicates the "Automatic control" function is selected
8. 7 - Front Passenger Side Temperature Preset Regulator
9. 8 - Rear Window Defogger Button
   • Illuminated LEDs indicate the "Rear window defogger on" function is selected.
10. 9 - Recirculation Mode Button
    • Illuminated LEDs indicate the "recirculated-air mode" function is selected.
    • The "recirculated-air mode" function is canceled when the defrost mode button (air to the windshield) is pressed
11. 10 - Air Distribution Button
    • The selected "air distribution" function is shown on the display
12. 11 - Fresh Air Blower -V2- Button
    • for setting the blower speed
13. 12 - SYNC  -button
    • Illuminated LED indicates the "SYNC" function is selected.
    • By pressing the button the settings for the front driver side are applied to the front passenger side and if equipped also on the rear A/C display control head.
14. 13 - Defrost Mode Button
    • Illuminated LED indicates the "defrost mode" function is selected.
15. B - Climatronic Control Module -J255- Control Head for Vehicles with Seat Heating/Seat Ventilation
    • With infrared sensor for temperature and sunlight Determines the temperature and sunlight on the display and control unit
16. 1 - Left Seat Heating Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT HEATING, CHECKING => Depending on the vehicle, the seat heating setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
17. 2 - Driver Side Temperature Preset Regulator
18. 3 - Left Auto  Button for Automatic A/C System Control
    • Illuminated LED indicates the "Automatic control" function is selected
19. 4 - A/C  Button for A/C Compressor
    • Illuminated LED indicates the "A/C compressor on" function is selected
20. 5 - Display
21. 6 - OFF  -Button for the Hearing and the Climate Controls
    • Illuminated LED indicates the "off" function is selected.
22. 7 - Right Auto  Button for Automatic A/C System Control
    • Illuminated LED indicates the "Automatic control" function is selected
23. 8 - Front Passenger Side Temperature Preset Regulator
24. 9 - Right Seat Heating Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT HEATING, CHECKING => Depending on the vehicle, the seat heating setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
25. 10 - Right Seat Ventilation Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT VENTILATION, CHECKING => Depending on the vehicle, the seat ventilation setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
26. 11 - Rear Window Defogger Button
    • Illuminated LEDs indicate the "Rear window defogger on" function is selected.
27. 12 - Recirculation Mode Button
    • Illuminated LEDs indicate the "recirculated-air mode" function is selected.
    • The "recirculated-air mode" function is canceled when the defrost mode button (air to the windshield) is pressed
28. 13 - Air Distribution Button
    • The selected "air distribution" function is shown on the display
29. 14 - Fresh Air Blower -V2- Button
    • for setting the blower speed
30. 15 - SYNC  -Button
    • Illuminated LED indicates the "SYNC" function is selected.
    • By pressing the button the settings for the front driver side are applied to the front passenger side and if equipped also on the rear A/C display control head.
31. 16 - Defrost Mode Button
    • Illuminated LED indicates the "defrost mode" function is selected.
32. 17 - Left Seat Ventilation Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT VENTILATION, CHECKING => Depending on the vehicle, the seat ventilation setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
