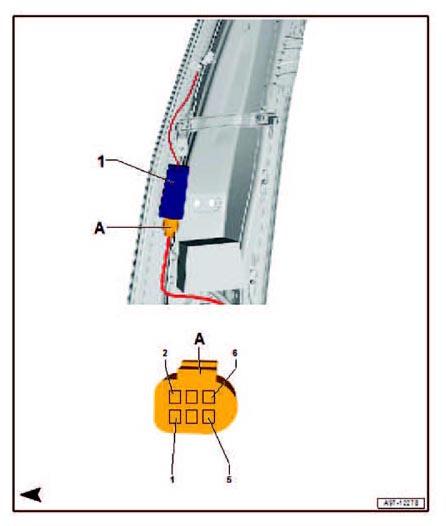

Air Ionization System Control Module Connector End View (J897, T6bp)
| 1 | Air Ionization System Control Module -J897- |
| A | 6-Pin Connector -T6bp-, black |
| -T6bp- (A) | Designation |
|---|---|
| 1 | Terminal 15, from (B281) Positive connection 5 (15a) in main wiring harness Fuse Panel B -SB- |
| 2 | Terminal 31, to (366) Ground Connection 1 (in main wiring harness) (44) Ground Connection (on left lower A-pillar) |
| 3 | LIN-Bus, rear A/C display control head -E265- |
| 4 | Air ionization system button -E677- |
| 5 | Air ionization system button -E677- |
| 6 | Air ionization system button -E677- |
