Right Rear Door Control Module J389
>>

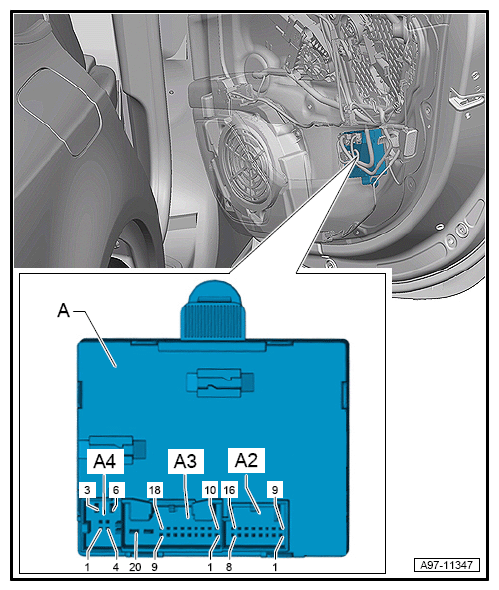

Right Rear Door Control Module -J389-, Connector Views
Right Rear Door Control Module -J389-, Connector Views
16-Pin Connector -T16o-/20-Pin Connector -T20h-
A2 - 16-Pin Connector -T16o-, black
A3 - 20-Pin Connector -T20h-, black
A4 - Not used
Courtesy of AUDI OF AMERICA, LLC
