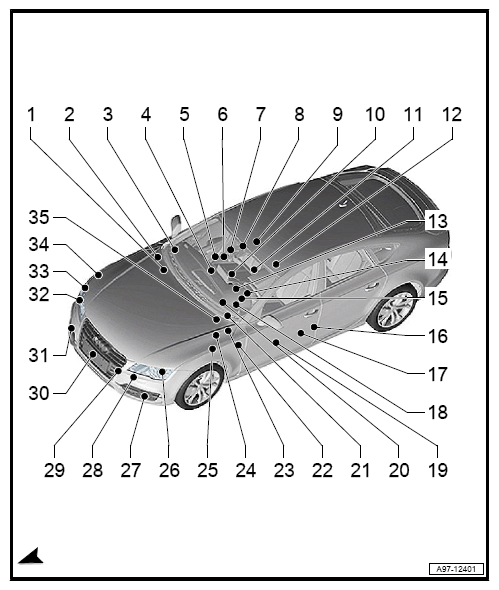

Comp. LOC. Vehicle Front Modules: Notes

1. 1 - → "CATALYTIC CONVERTER HEATING CONTROL MODULE 1 J1021  "
2. 2 - → "STRUCTURE-BORNE SOUND CONTROL MODULE J869  "
3. 3 - → "FRESH AIR BLOWER CONTROL MODULE J126  "
4. 3 - → "CONTROL MODULE FOR EMERGENCY CALL MODULE AND COMMUNICATION UNIT J949  "
5. 4 - → "CONTROL MODULE FOR INFORMATION ELECTRONICS 1 J794, MMI NAVIGATION PLUS, 7UG, FROM MODEL YEAR 2015  "
6. 5 - → "IMAGE PROCESSING CONTROL MODULE J851  "
7. 6 - → "TIRE PRESSURE MONITORING CONTROL MODULE J502  "
   • for RS models only
8. 7 - → "CAMERA CONTROL MODULE J852  "
9. 8 - → "POWER SUNROOF MODULE J245  "
10. 9 - → "ROOF CONTROL MODULE J528  "
11. 10 - → "CLIMATRONIC CONTROL MODULE J255  "
12. 11 - → "AIRBAG CONTROL MODULE J234  "
13. 12 - → "SENSOR ELECTRONICS CONTROL MODULE J849  "
14. 13 - → "INSTRUMENT CLUSTER CONTROL MODULE J285  "
15. 14 - → "STEERING COLUMN ELECTRONIC SYSTEMS MODULE J527  "
16. 15 - → "ACTIVE STEERING MOTOR V477  "
17. 16 - → "LEFT FRONT SEAT BELT TENSIONER MODULE J854/RIGHT FRONT SEAT BELT TENSIONER MODULE J855  "
18. 16 - → "MEMORY SEAT/STEERING COLUMN ADJUSTMENT MODULE J136  "
19. 16 - → "PASSENGER OCCUPANT DETECTION MODULE J706  "
20. 17 - → "NIGHT VISION SYSTEM CONTROL MODULE J853  "
21. 18 - → "POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE J866  "
22. 18 - → "ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764  "
23. 19 - → "ACTIVE STEERING CONTROL MODULE J792  "
24. 20 - → "WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE J898  "

    Courtesy of AUDI OF AMERICA, LLC

25. 21 - → "WIPER MOTOR CONTROL MODULE J400  "
26. 22 - → "16-PIN CONNECTOR T16, DIAGNOSTIC CONNECTOR  "
27. 23 - → "HEADLAMP RANGE CONTROL MODULE J431/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE J745  "
28. 24 - → "VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519  "
29. 25 - → "ABS CONTROL MODULE J104  "
30. 26 - → "LEFT FRONT HEADLAMP MX1/RIGHT FRONT HEADLAMP MX2  "
31. 27 - → "DISTANCE REGULATION MODULE 2 J850  "
32. 28 - → "POWER STEERING MODULE J500  "
33. 29 - → "GARAGE DOOR OPENER CONTROL MODULE J530  "
34. 30 - → "COOLANT FAN CONTROL MODULE J293  "
35. 31 - → "DISTANCE REGULATION MODULE J428  "
36. 32 - → "LEFT FRONT HEADLAMP MX1/RIGHT FRONT HEADLAMP MX2  "
37. 33 - → "AUXILIARY HEATER CONTROL MODULE J364  "
38. 34 - → "SUBFRAME MOUNT CONTROL MODULE J931  "
39. 35 - → "ENGINE CONTROL MODULE (ECM) J623  "
