Engine Control Module (ECM) -J623-, Connector Views, 154-Pin, RHD

60-Pin Connector -T60-/94-Pin Connector -T94-

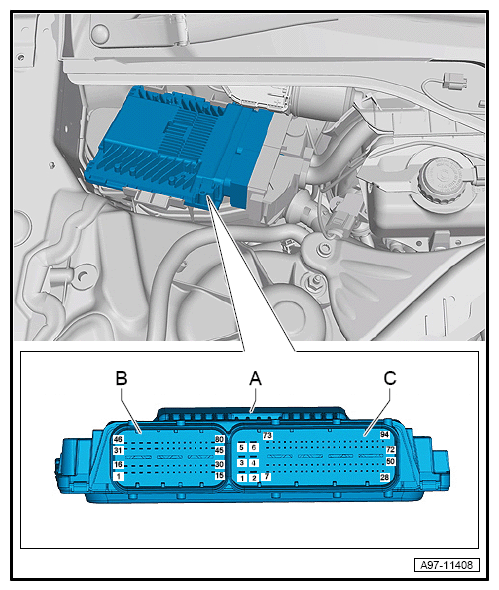

  1. B - 60-Pin Connector -T60-, black
  2. C - 94-Pin Connector -T94-, black
G12768111Courtesy of AUDI OF AMERICA, LLC
