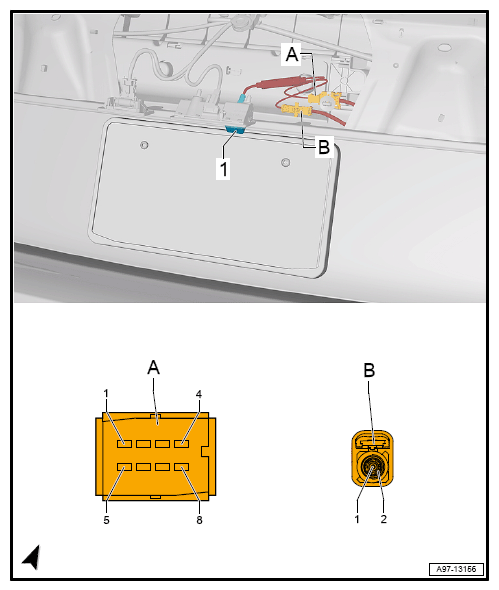

Rear View Camera System Control Module -J772-, Connector Views, From My 2016
- 8-Pin Connector -T8bg-
| T8bg (A) | Designation |
|---|---|
| 1 | Terminal 15, from Fuse Carrier 1ST1 in fuse panel B SB |
| 2 | |
| 3 | |
| 4 | Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness) |
| 5 | Terminal 31, to 51 Ground Connection (in right luggage compartment) |
| 6 | |
| 7 | |
| 8 | Extended System CAN-Bus Low, to B109 CAN-Bus Extended Low Connection 1 (in main wiring harness) |
