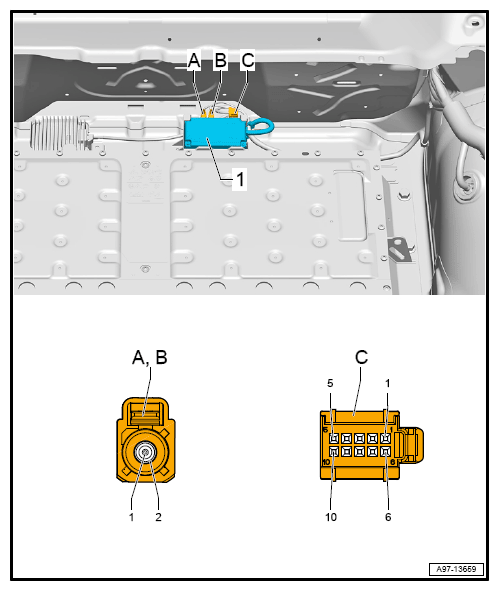

Telematics Interface Control Module -J1221-, Connector View

1. 10-Pin Connector -T10qp-

Courtesy of AUDI OF AMERICA, LLC

T10qp (C)	Designation
1	Terminal 30, from Fuse Carrier 1 -ST1- in fuse panel F -SF-
2
3
4
5	CAN-Bus Low to Telephone Interface -RX8-
6	Terminal 31, to 51 Ground Connection (in right luggage compartment)
7
8
9
10	CAN-Bus High, to Telephone Interface -RX8-
