Peripheral Camera Control Module -J928-, Location

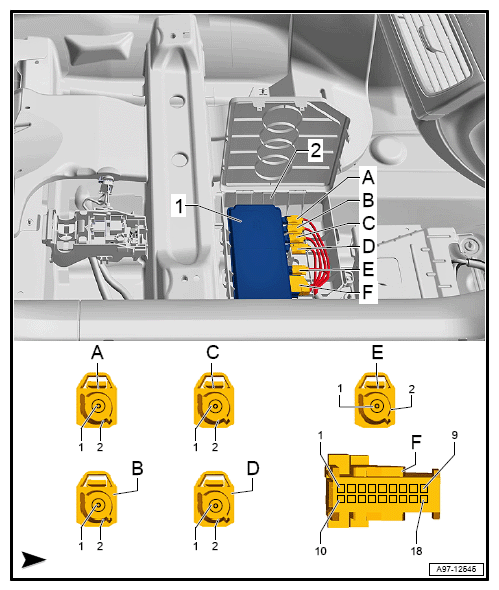

  1. 1 - Peripheral Camera Control Module -J928-
  2. A - 5-Pin Connector -T5ay-, blue, rear peripheral camera R246
  3. B - 5-Pin Connector -T5ax-, white, front peripheral camera R243
  4. C - 5-Pin Connector -T5aw-, black, right Peripheral Camera R245
  5. D - 5-Pin Connector -T5av-, green, left Peripheral Camera R244
  6. E - Double Connector -T2lt-, green, Control Module for Information Electronics 1 J794
  7. F - 18-Pin Connector -T18f-, black
G12768287Courtesy of AUDI OF AMERICA, LLC
