Electronic Steering Column Lock Control Module -J764-, Connector Views

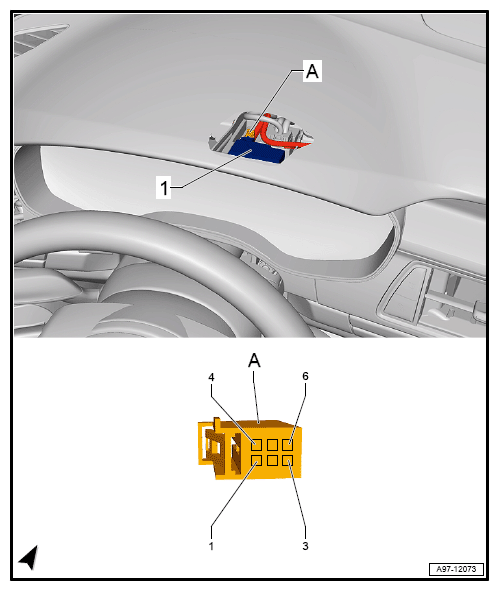

- 6-Pin Connector -T6p-
| T6p (A) | Designation |
|---|---|
| 1 | Terminal 15 from Comfort System Central Control Module J393 |
| 2 | Vehicle Electrical System Control Module J519 |
| 3 | Terminal 31, to 199 Ground Connection 3 (in instrument panel wiring harness) 45 Ground Connection (behind instrument panel, center) |
| 4 | Comfort System Central Control Module J393 |
| 5 | LIN-Bus, A209 LIN bus connection 1 (in instrument panel wiring harness) Comfort System Central Control Module J393 |
