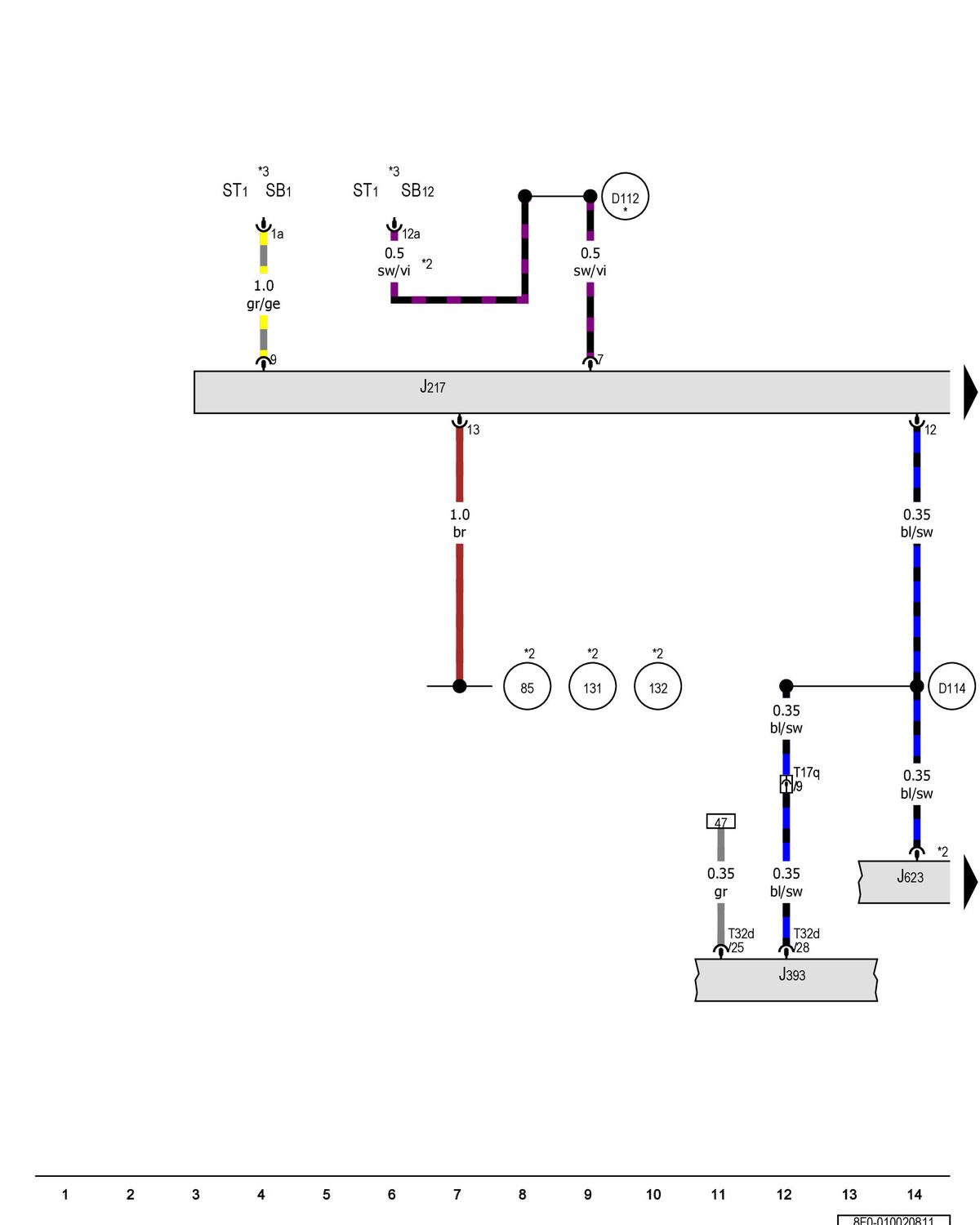

Transmission Control Module, Comfort System Central Control Module, Engine Control Module: Notes

GWW8F0-010020811

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
