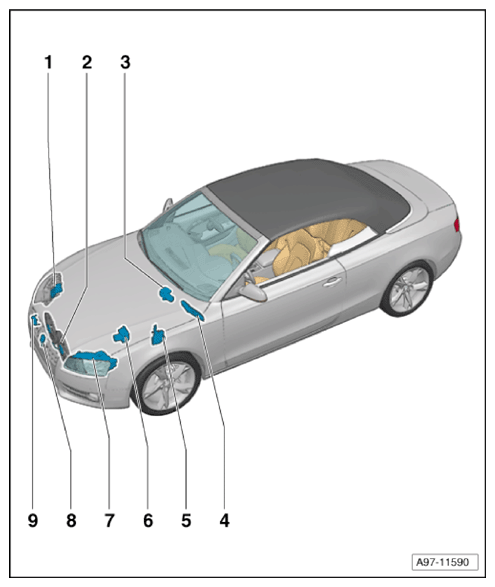

Overview Of Control Modules
- 1
- Right High-intensity Gas Discharge Lamp Control Module -J344-
- Component Location and Connector, Through Model Year 2012: → RIGHT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J344-, THROUGH MODEL YEAR 2012
- Component Location and Connector, From Model Year 2013: → RIGHT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J344-, FROM MODEL YEAR 2013
- 2
- Coolant Fan Control (FC) Control Module -J293-/Coolant Fan -V7-
- Component Location and connectors for models with 400 W or 600 W coolant fan: → COOLANT FAN 400 W OR 600 W
- Component Location and connectors for models with 800 W or 1000 W coolant fan: → COOLANT FAN 800 W OR 1000 W
- 2
- Coolant Fan Control (FC) Control Module 2 -J671-/Coolant Fan 2 -V177-
- Component Location and connectors for models with 800 W or 1000 W coolant fan: → COOLANT FAN 800 W OR 1000 W
- 3
- Wiper Motor Control Module -J400-
- Component Location and Pin Connector: → WIPER MOTOR CONTROL MODULE -J400-
- 4
- Engine Control Module (ECM) -J623-
- Component Location and connectors for models (with -T60- and -T94-): → ENGINE CONTROL MODULE (ECM) -J623-
- Component Location and connectors for models (with -T91- and -T105-): → COMPONENT LOCATION ENGINE CONTROL MODULE (ECM) -J623- FOR MODELS (WITH -T91- AND -T105-):
- 5
- Transmission Control Module (TCM) -J217-/Direct Shift Gearbox (DSG) Mechatronic -J743-
- Component Location and Pin Connectors: → TRANSMISSION CONTROL MODULE (TCM) -J217-/DIRECT SHIFT GEARBOX (DSG) MECHATRONIC -J743-
- 6
- ABS Control Module -J104-
- Component Location and Pin Connector: → ABS CONTROL MODULE -J104-
- 7
- Left High-intensity Gas Discharge Lamp Control Module -J343-
- Component Location and Connector, Through Model Year 2012: → LEFT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J343-, THROUGH MODEL YEAR 2012
- Component Location and Connector, From Model Year 2013: → LEFT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J343-, FROM MODEL YEAR 2013
- 8
- Garage Door Opener Control Module -J530-
- Component Location and Pin Connector: → GARAGE DOOR OPENER CONTROL MODULE -J530-
- 9
- Distance Regulation Control Module -J428-
- Component Location and Pin Connector: → DISTANCE REGULATION CONTROL MODULE -J428-
