Radio, Entering Security Code To Activate Anti-Theft Coding

The radio is delivered having a fixed code. The security code means that every radio with anti-theft coding is programmed with its own code. This code is not active from the factory. To increase anti-theft protection, there is no longer a radio card in the radio and navigation system owner's manual. The entry of the radio code is no longer described in the owner's manual.

The Anti-theft coding on a unit that is ready to play is activated by entering the fixed code.

On chorus II+, concert II+ and symphony II+ radio systems, enter the radio code as follows

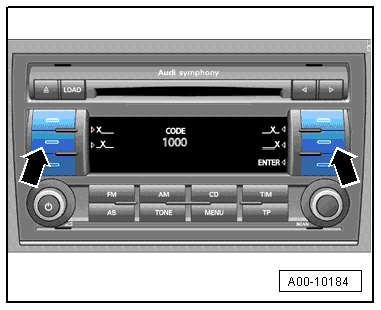

-- Switch on radio. "Code 1000" appears in the display.

-- Press upper left control knob "X___" -arrow- until first digit of radio code appears in display.

-- Enter remaining three radio code digits with other three control buttons

-- Press ENTER. The radio is coded.

-- Dispose of sticker with radio code.

If the radio code is entered incorrectly two times and "Code Safe 2" appeared in the display, use the following procedure

Leave radio switched on approximately 60 minutes. After 60 minutes, "Code Safe / Code 1000" appears in the display and the radio is switched off.

Enter radio code again.

On navigation system BNS 5.0, enter radio code as follows

-- Switch on navigation system

-- Enter PIN using "Speller"

-- Confirm entry with "OK".

-- Dispose of sticker with radio code.
