Standard Sound System, Overview

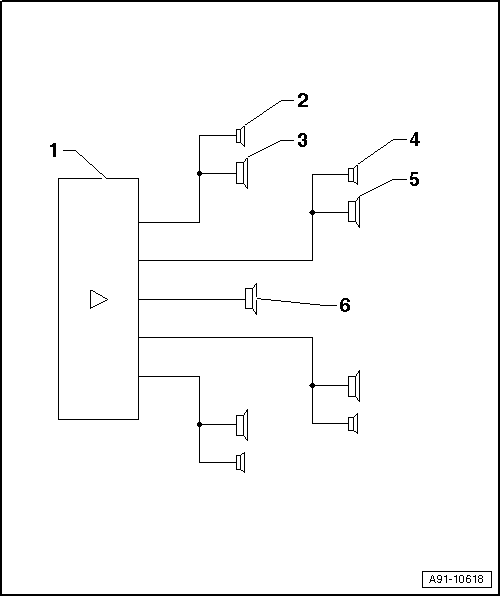

Fig 1: Identifying Standard Sound System
GWWA91-10618Courtesy of AUDI OF AMERICA, LLC
  1. Digital Sound System Control Module -J525- behind the luggage compartment left side trim
  2. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22- in left and right front of instrument panel
  3. Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23- at bottom of doors
  4. Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16- in upper rear side trim
  5. Left Rear Mid/Low Range Loudspeaker -R159- /Right Rear Mid/Low Range Loudspeaker -R160- in rear side trim (Coupe)/in rear wall (Roadster)
  6. Center Mid/High Range Speaker -R158- in center instrument panel, front
