Assembly Overview

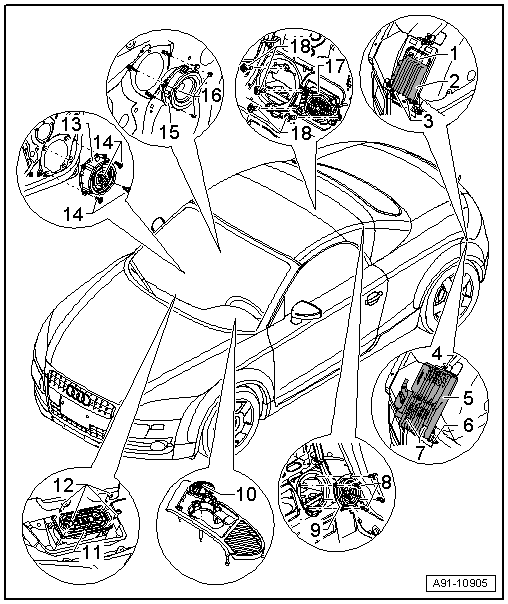

Fig 1: Identifying Roadster Assembly
GWWA91-10905Courtesy of AUDI OF AMERICA, LLC
  1. Clamp
  2. Digital Sound System Control Module -J525-
  3. Screw
    • 3 Nm
  4. Nut
    • 5 Nm
  5. Digital Sound System Control Module -J525- BOSE
  6. Nut
    • 5 Nm
  7. Screw
    • 3 Nm
  8. Screw
    • 2 Nm
  9. Left Rear Mid/Low Range Loudspeaker -R159- /Right Rear Mid/Low Range Loudspeaker -R160-
  10. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
  11. Center Mid/High Range Loudspeaker -R158-
  12. Screw
    • 1 Nm
  13. Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
  14. Screw
    • 3.5 Nm
  15. Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
  16. Screw
    • 2 Nm
  17. Center speaker -R148-
  18. Screw
    • 2 Nm
