Radio System Assembly Overview

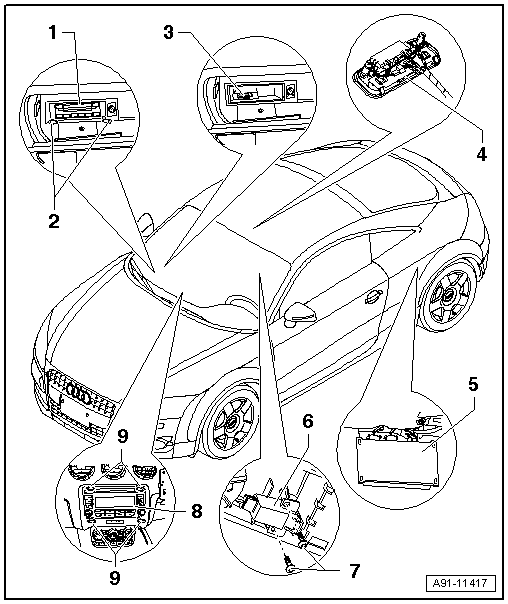

Fig 1: Identifying Radio System Assembly
GWWA91-11417Courtesy of AUDI OF AMERICA, LLC
  1. CD Changer -R41-
  2. Radio Removal Tool T10057
  3. iPod Baseplate -R192-
  4. Front Interior Light -W1- with Microphone Unit (in front roof module) -R164-
  5. Satellite Radio -R146-
  6. External Audio Source Connection -R199-
  7. Screw
    • 1 Nm
  8. Radio -R-
  9. Radio Removal Tool T10057
