Overview - Side Window

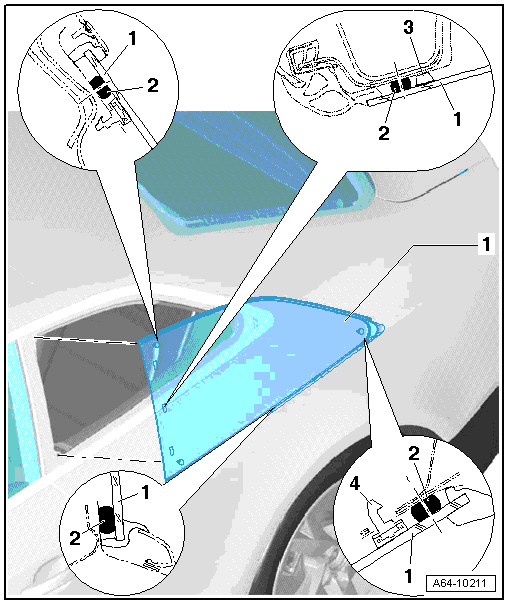

Fig 1: Side Window Assembly Overview
GWWA64-10211Courtesy of AUDI OF AMERICA, LLC
  1. Side Window
    • Roof trim molding and side trim molding removed. Refer to OVERVIEW - ROOF TRIM MOLDING .
    • When installing a new window, first press it onto the >>C-pillar<< using the securing pin and then insert it completely in the window opening.
    • If a removed window is reinstalled, secure it to the >>C-pillar<< using adhesive tape.
  2. Adhesive Bead
  3. Spacer
    • Quantity: 3
  4. Locking Pin
    • No replacement part
    • Is cut through when removing window.
