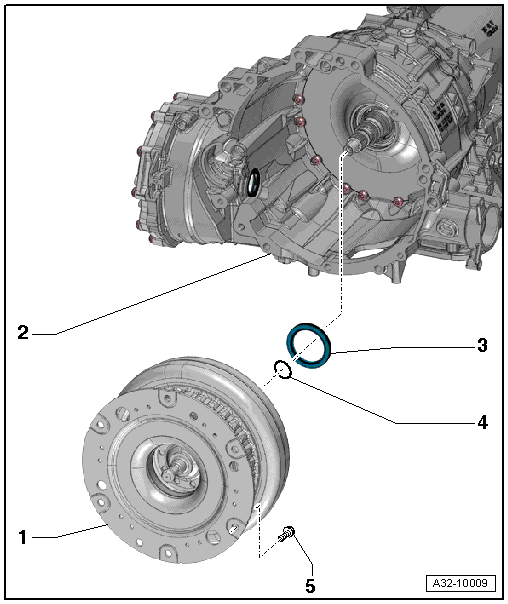

Torque Converter Overview
- Torque Converter
- There are different torque converters. Use the code letters to designate them.
- Allocation torque converter to transmission, refer to TRANSMISSION-ENGINE ALLOCATION .
- Removing and installing, refer to TORQUE CONVERTER, REMOVING AND INSTALLING .
- Transmission Housing
- Shaft Seal
- For torque converter
- Replacing, refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .
- O-Ring
- Replace
- Bolt
- 60 Nm
- Quantity: 6
- Replace
- Procedure for tightening, refer to TRANSMISSION, INSTALLING => Install the first bolt -arrow- and tighten by hand (2 Nm). .
