Rearview Camera -R189-, REMOVING AND INSTALLING: Removing

The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.

-- Remove the rear lid trim panel, refer to Luggage Compartment Trim Panels .

-- Unlock and disconnect the connectors -3 and 4- inside the rear lid.

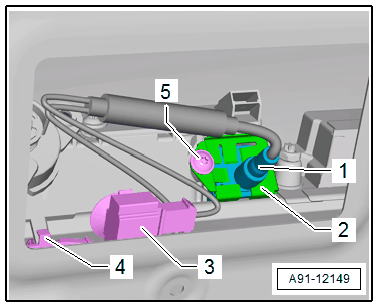

Fig 1: Identifying Connectors -3 And 4- Inside Rear Lid

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -5-.

-- Remove the retaining plate -2-.

-- Remove the Rearview Camera -R189- -1- from the handle.
