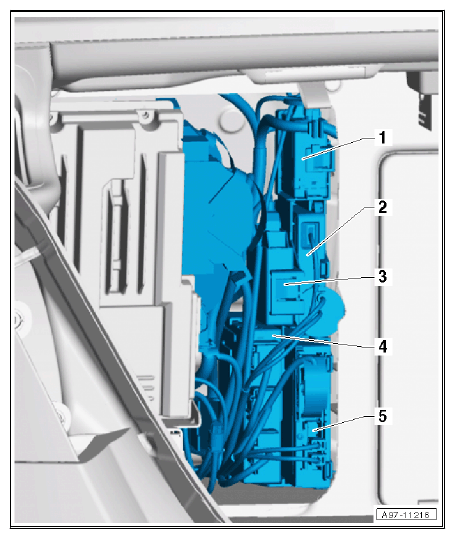

Component Location Control Modules In Left Luggage Compartment, Through Model Year 2013
In Luggage Compartment Left, On Rear Wall.
- Auxiliary Heater RF Receiver -R64-
- Component Location and Connectors → COMPONENT LOCATION PARALLEL PARKING ASSISTANCE CONTROL MODULE -J791-, FROM MODEL YEAR 2014
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION AUXILIARY HEATER RF RECEIVER -R64-, FROM MODEL YEAR 2014
- Amplifier for Telephone -R86-
- Component Location and Connectors → PIN ARRANGEMENTS AUXILIARY HEATER RF RECEIVER -R64-
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION AMPLIFIER FOR TELEPHONE -R86-, FROM MODEL YEAR 2014
- Location System Control Module -J895-
- Component Location and Connectors → COMPONENT LOCATION VEHICLE POSITIONING SYSTEM CONTROL MODULE -J895-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION VEHICLE POSITIONING SYSTEM CONTROL MODULE -J895-, FROM MODEL YEAR 2014
- Towing Recognition Control Module -J345-
- Component Location and Connectors → COMPONENT LOCATION TOWING RECOGNITION CONTROL MODULE -J345-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION TOWING RECOGNITION CONTROL MODULE -J345-, FROM MODEL YEAR 2014
- Rear View Camera System Control Module -J772-
- Component Location and Connectors → COMPONENT LOCATION REAR VIEW CAMERA SYSTEM CONTROL MODULE -J772-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION REAR VIEW CAMERA SYSTEM CONTROL MODULE -J772-, FROM MODEL YEAR 2014
