Component Location Comfort System Central Control Module -J393-, From Model Year 2014: Notes

Component Location

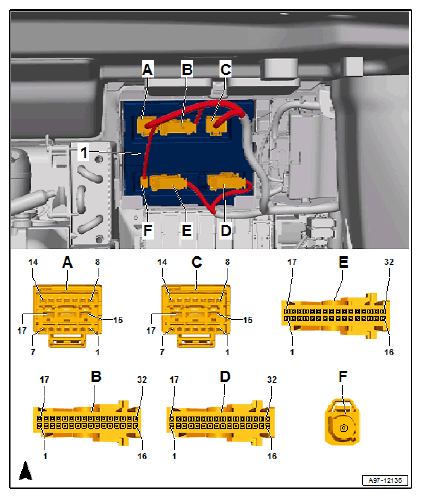

In Luggage Compartment Right, On Rear Wall -1-.

1. 1  - Comfort System Central Control Module -J393-
2. A  - 17-Pin Connector -T17D-, Black
3. B  - 32-Pin Connector -T32D-, Black
4. C  - 17-Pin Connector -T17E-, Brown
5. D  - 32-Pin Connector -T32E-, Blue
6. E  - 32-Pin Connector -T32C-, Grey
7. F  - Double Connector -T2A-, Bluegrey, Central Locking And Anti-Theft Alarm System Antenna -R47-
