Component Location Instrument Cluster Control Module -J285-

Component Location

In Driver's Instrument Panel.

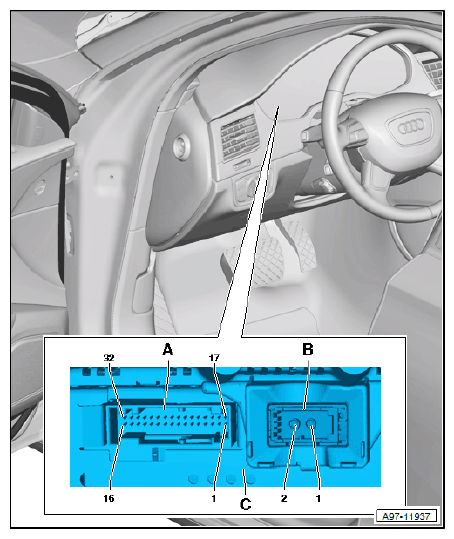

1. 32-Pin Connector -T32-, Blue
2. Double Connector -T2GD-, MOST-Bus, Black
3. Instrument Cluster Control Module -J285-
   • with: High Beam Indicator Lamp -K1-, ABS Warning Lamp -K47-, Left Turn Signal Indicator Lamp -K261-, display unit in instrument cluster -Y24-, Airbag indicator lamp -K75-, Diesel electronics indicator lamp -K104-, Engine Electronics Warning Lamp -K149-, Fuel Gauge -G1-, Right Turn Signal Indicator Lamp -K262-

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES VEHICLE FRONT  .
