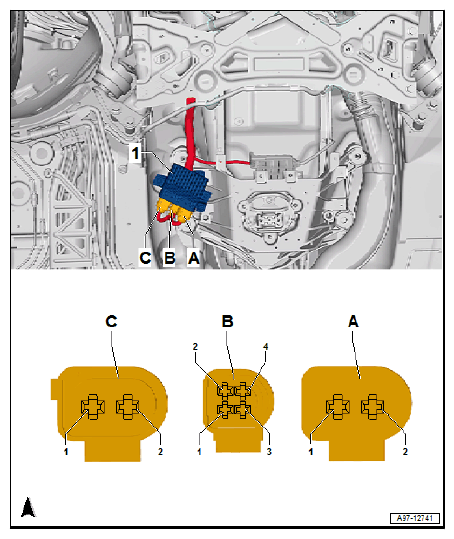

Component Location Catalytic Converter Heating Control Module 1 -J1021-: Notes

Component Location

Behind Front Axle, Right, Near Transmission -1-.

1. 1  - Catalytic converter heating control module 1 -J1021-
2. A  - Double Connector -T2QC-, Black
3. B  - 4-Pin Connector -T4GK-, Black
4. C  - Double Connector -T2QB-, White

Courtesy of AUDI OF AMERICA, LLC
