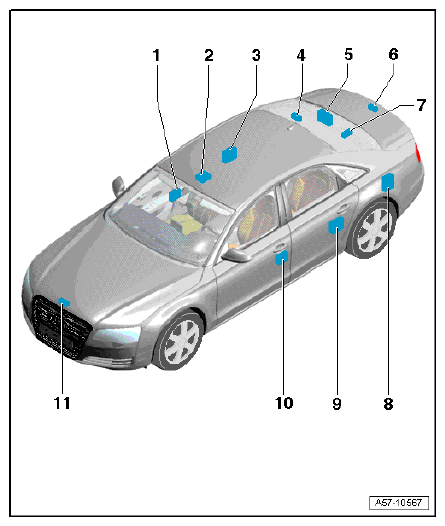

Central Locking System Component Overview: Notes
- Front Passenger Door Control Module -J387-
- Integrated in Front Passenger Window Regulator Motor -V148-
- Anti-Theft Alarm System Sensor -G578-
- Right Rear Door Control Module -J389-
- Integrated in Right Rear Window Regulator Motor -V27-
- Fuel Tank Lid Unlock Motor -V155-
- Comfort System Central Control Module -J393-
- Component location, in right rear side panel → CENTRAL CONTROL MODULE FOR COMFORT SYSTEM
- Rear Lid Unlock Motor -V139-
- Vehicle Positioning System Interface Control Module -J843- → VEHICLE POSITIONING SYSTEM INTERFACE CONTROL MODULE
- Rear Lid Control Module -J605- → REAR LID CONTROL MODULE
- Left Rear Door Control Module -J388-
- Integrated in Left Rear Window Regulator Motor -V26-
- Driver Door Control Module -J386-
- Integrated in Driver Window Regulator Motor -V147-
- Front Hood Switch -F266-/Front Hood Switch 2 -F329-
- Component location in lock carrier
